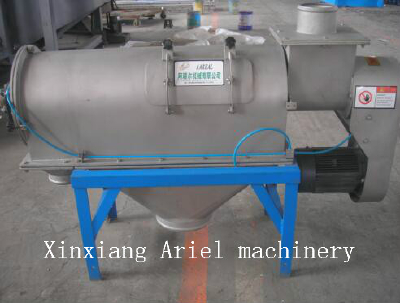

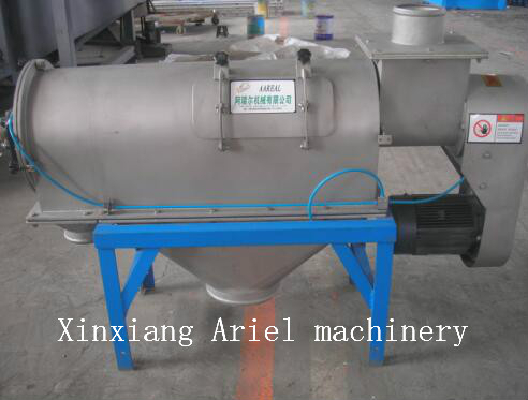

Material from the screw conveyor into the drum-shaped screen by rotating blades disperse the material into a mist, rotation advance fines by centrifugal force and thrust force acting through the screen, fines discharged from the discharge port, not over the net material gradually advanced to the ends of the screen coarse material discharge outlet.

   For viscous, tend to have a static, screening multi-fiber materials. Used in metallurgy, mining, pharmaceutical, food, chemical, metal powder and nonmetal industries.

Features

1, the whole small size, light weight, smooth no vibration, no noise, good airtight performance, no dust, high efficiency;

2, caking materials are then broken function;

3, the ends of bearing have airtight protection, to prevent dust from entering the bearings, effectively extending the service life of bearings;

4, mesh erosion by the cyclone, the network can automatically clear, long continuous operation, safe and reliable.

The device is based on the structure mode is divided into: general-purpose, efficient and convenient type and type, convenient type suitable for food and pharmaceutical industries, internal arc welding process easy to clean, easy disassembly structure;-efficient mesh barrel is rotated so higher screen utilization, improved productivity and screen life.
